Field Reports in vSite AR (KB-AM011)

vGIS allows users to report discrepancies found between the GIS/BIM data and the real world. Upon completion, the report is sent to the company administrator(s) in real-time.

To access Field/ Issue Reporting, select the Tools button, and from there you can access Field Reports (Fig. 1).

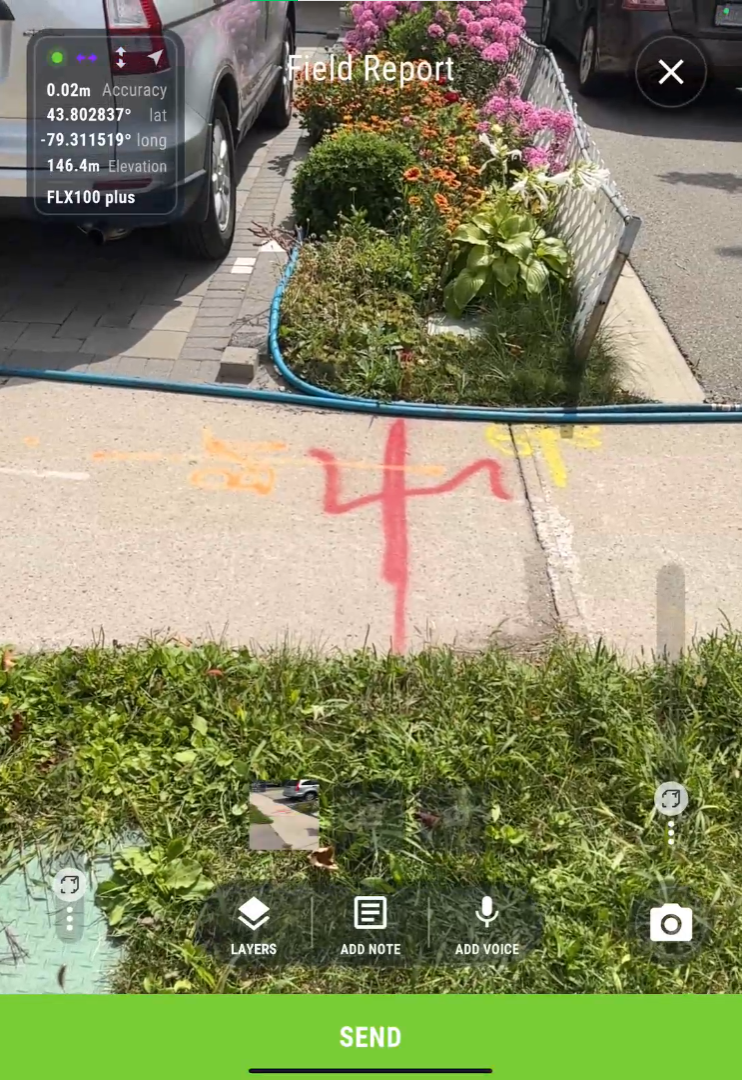

The reporting interface will open to a device camera view of the augmented reality environment. From this screen, the user can capture a short video of up to 10 seconds, take a photo, or close the report sequence (Fig. 2).

The action bar at the bottom-center of the screen allows users to open and hide layers, add text notes, and add voice notes. Above the action bar will show the thumbnails to the last three field reports.

After field reporting, the user will have the option to link the report to an AR object, add a voice note or type a comment.

Once done, press the Submit button.

Fig. 1

Fig. 2

Have Questions? Feel free to Submit A Request to speak with a member of the vGIS Support Team.

Reviewed:  2025-03-21
