Overview

The Data Collection tool in vGIS allows authorized users to add new objects directly into the system while working in the augmented reality environment. Only data sources with the appropriate permissions can access this feature from the main menu.

How To

Access Data Collection in AR view

1. Enter AR View in the vGIS app.

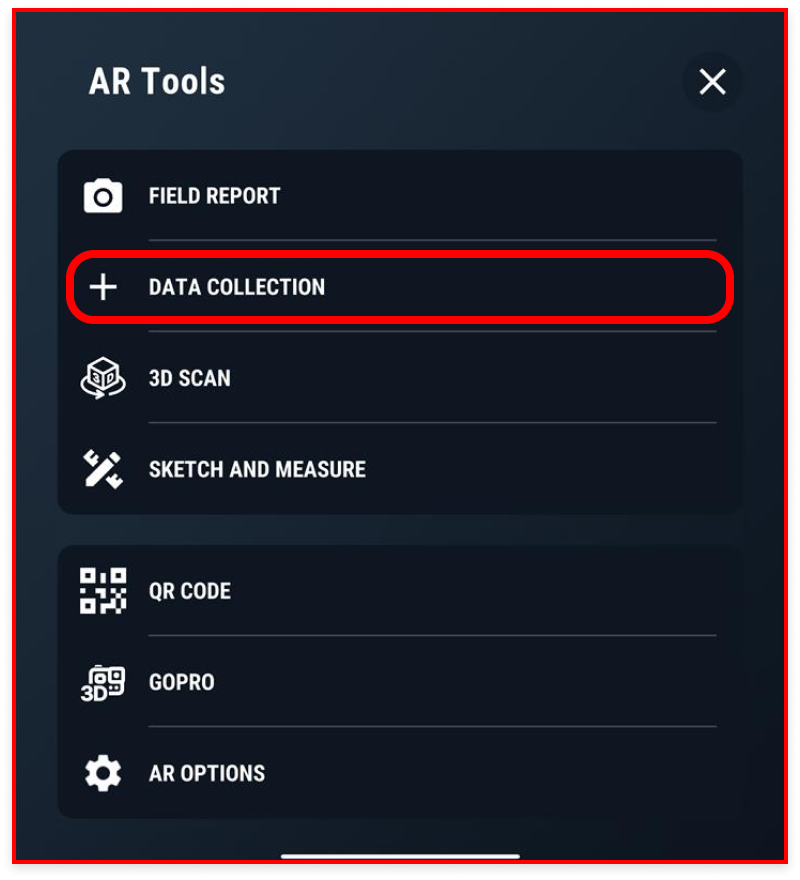

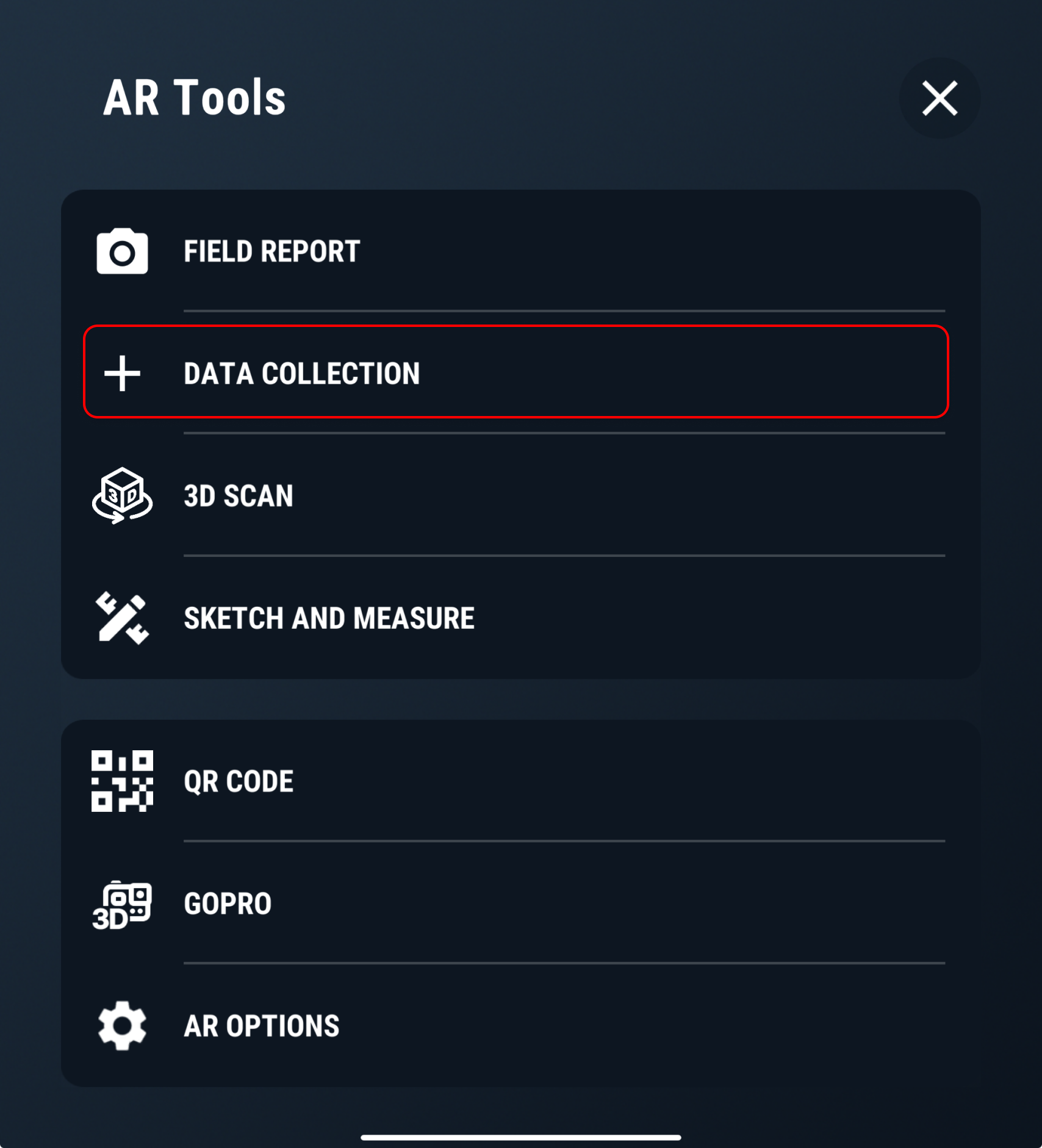

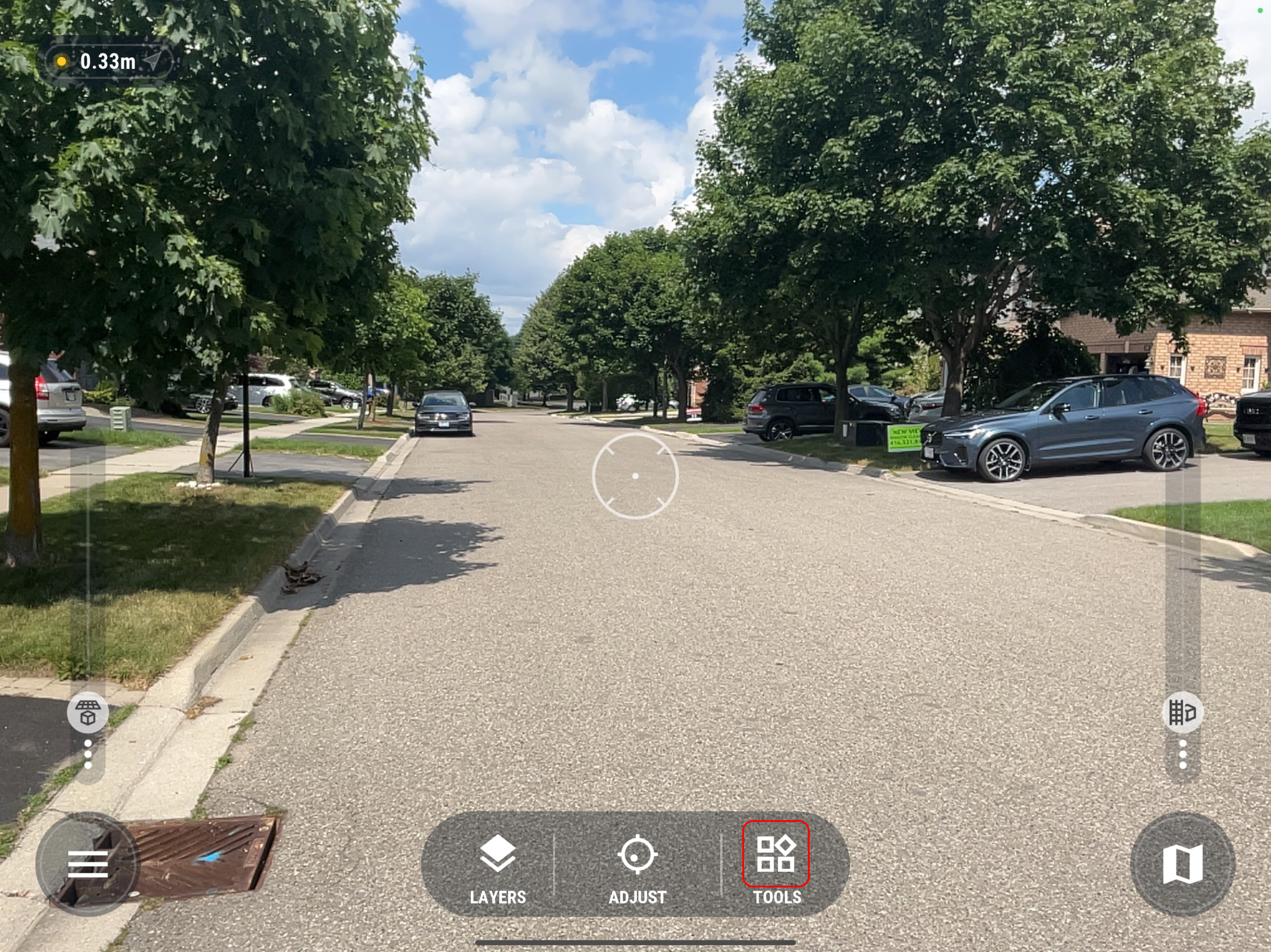

2. Tap the Tools button and select Data Collection (Fig. 1)

Fig. 1

Select an Object

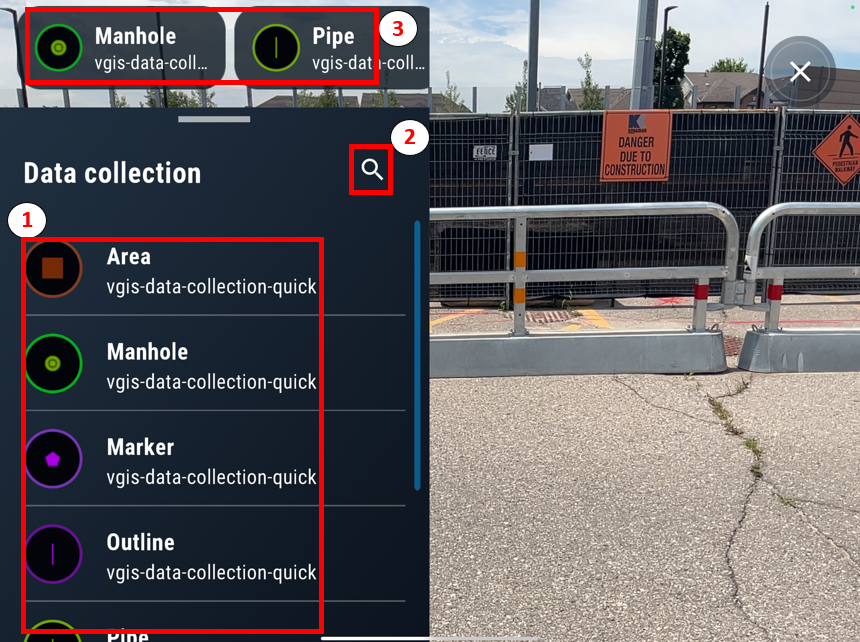

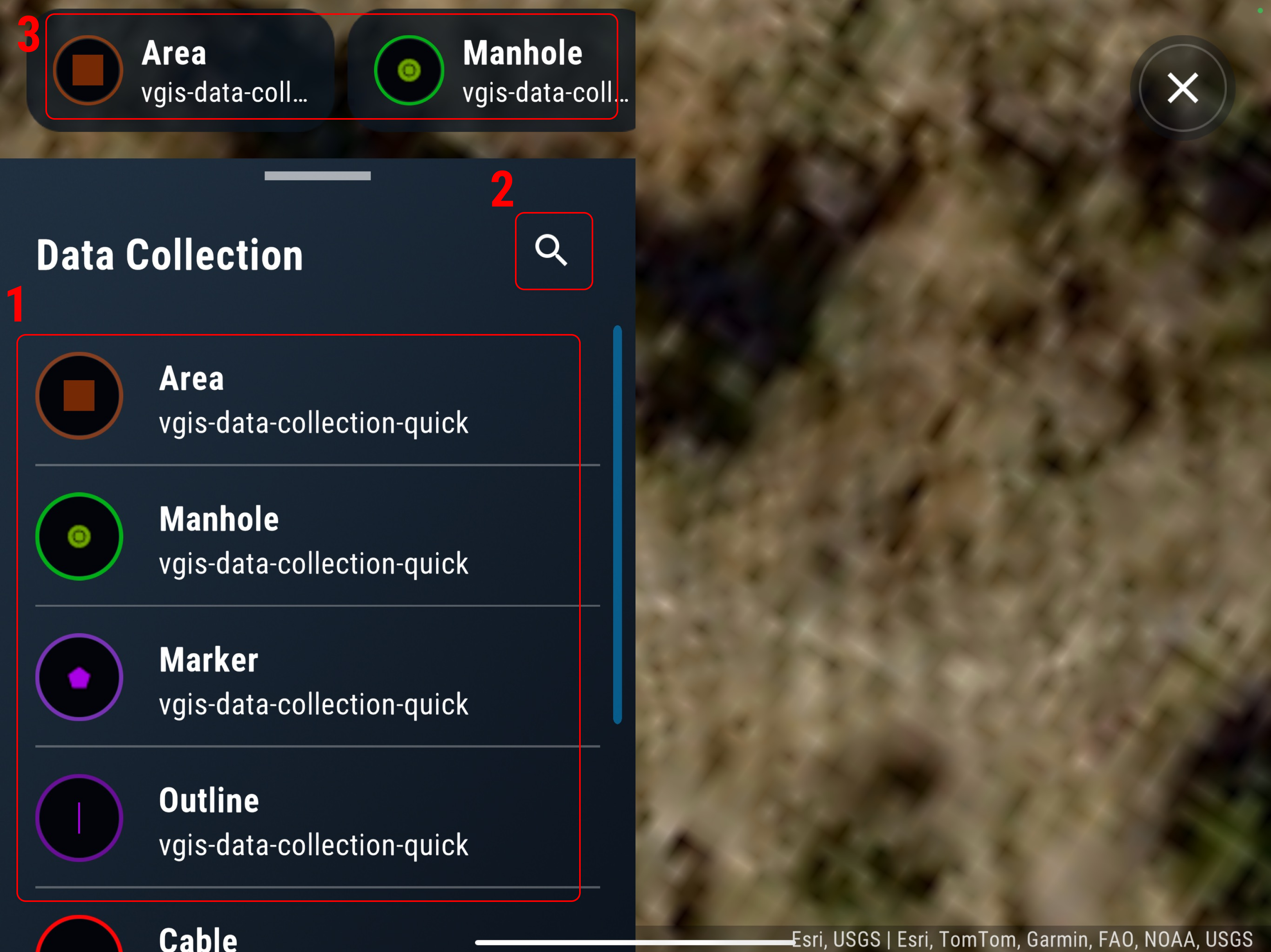

• A menu will appear (Fig. 2) with a section of available entries (1), including:
  • Area
  • Manhole
  • Marker
  • Outline
  • Pipe
  • Pole
  • Valve

• Use the Search Bar at the top of the menu (2) to narrow down your selection.

• As you enter new models, tabs above the menu (3) will start to populate for easy navigation.

Fig. 2

Access Data Collection in Map View

1. Enter Map View in the vGIS app.
2. Tap the Tools button and select Data Collection (Fig. 1)

Placing Objects in AR

After selecting an object, you will return to the augmented reality environment to place it in the desired location.

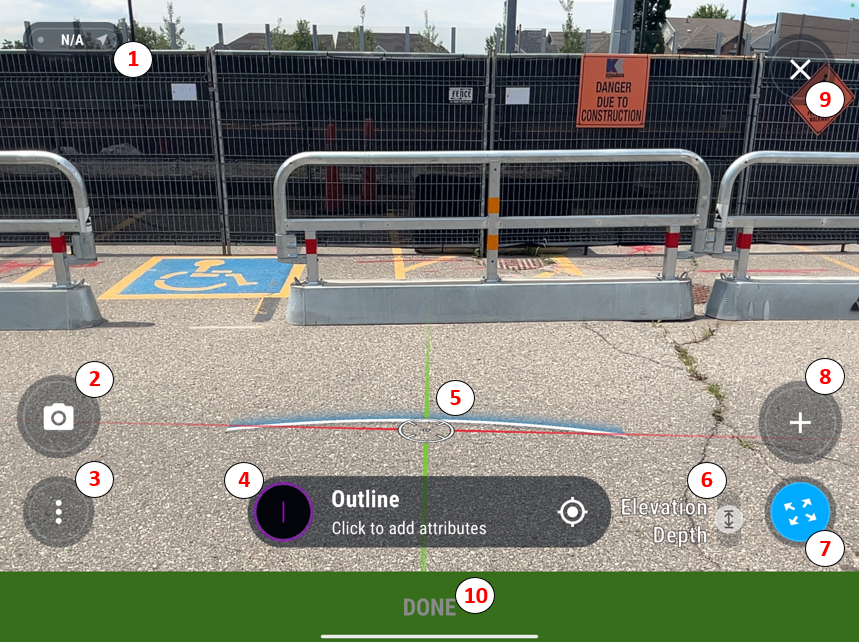

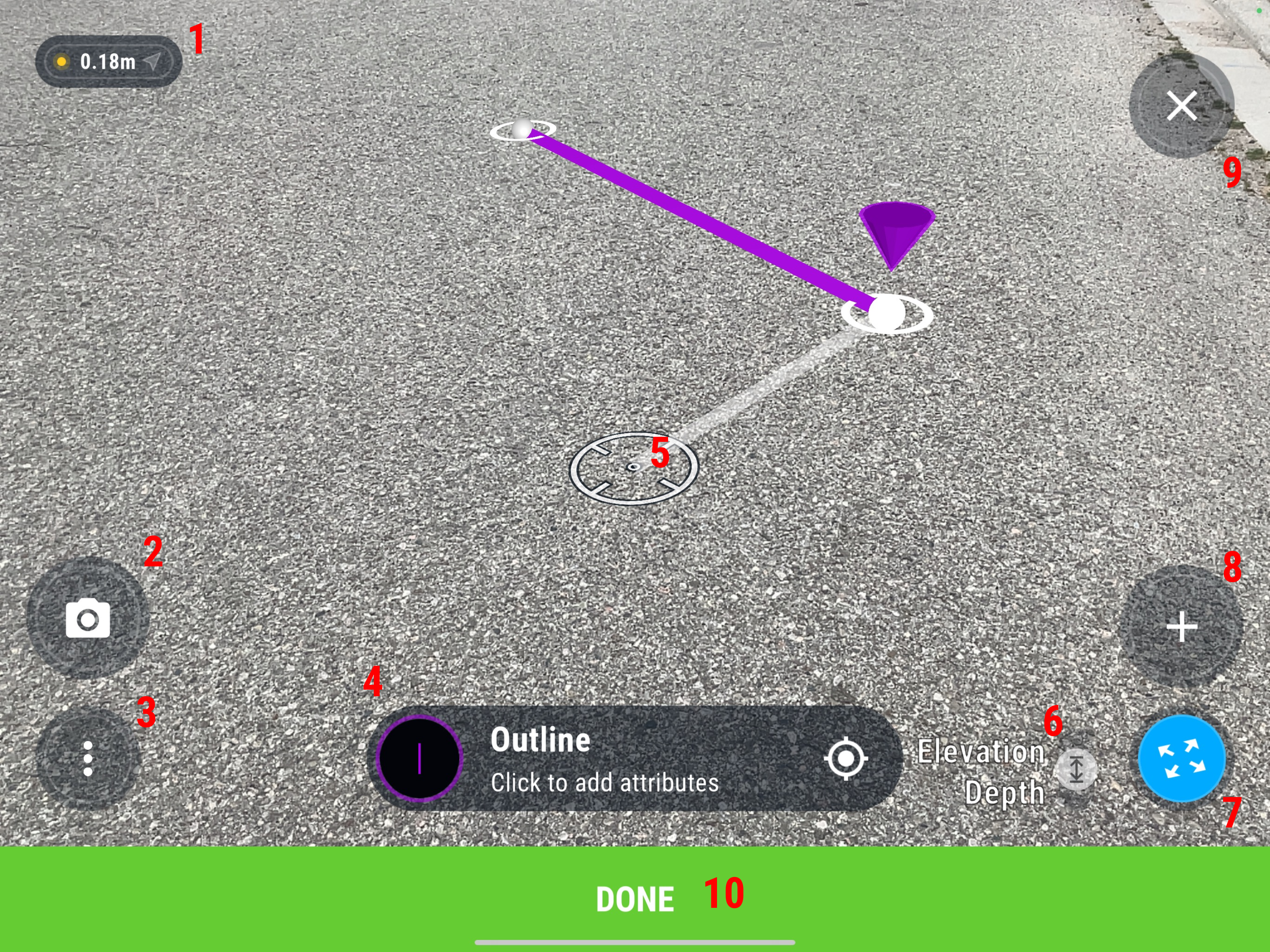

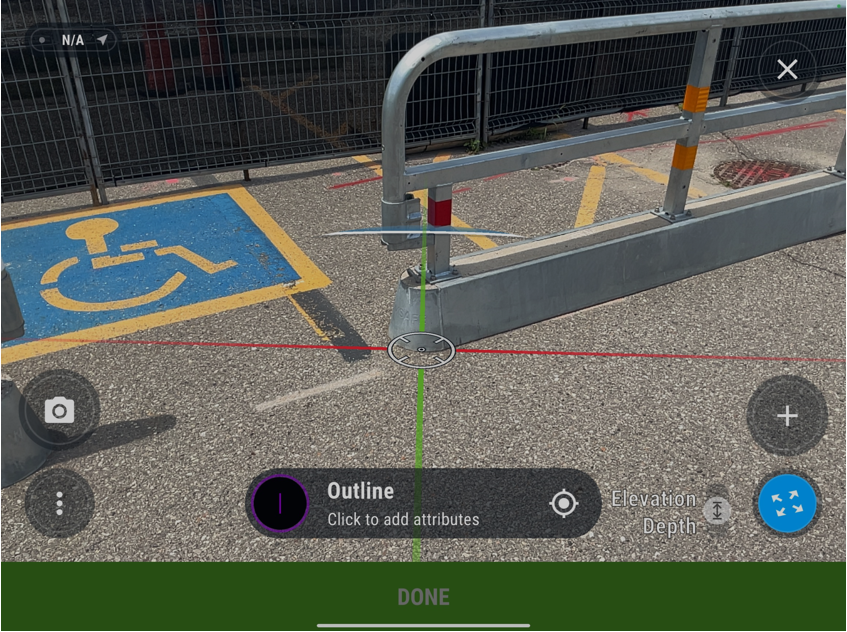

While placing objects, you will see the following interface options (Fig. 3):

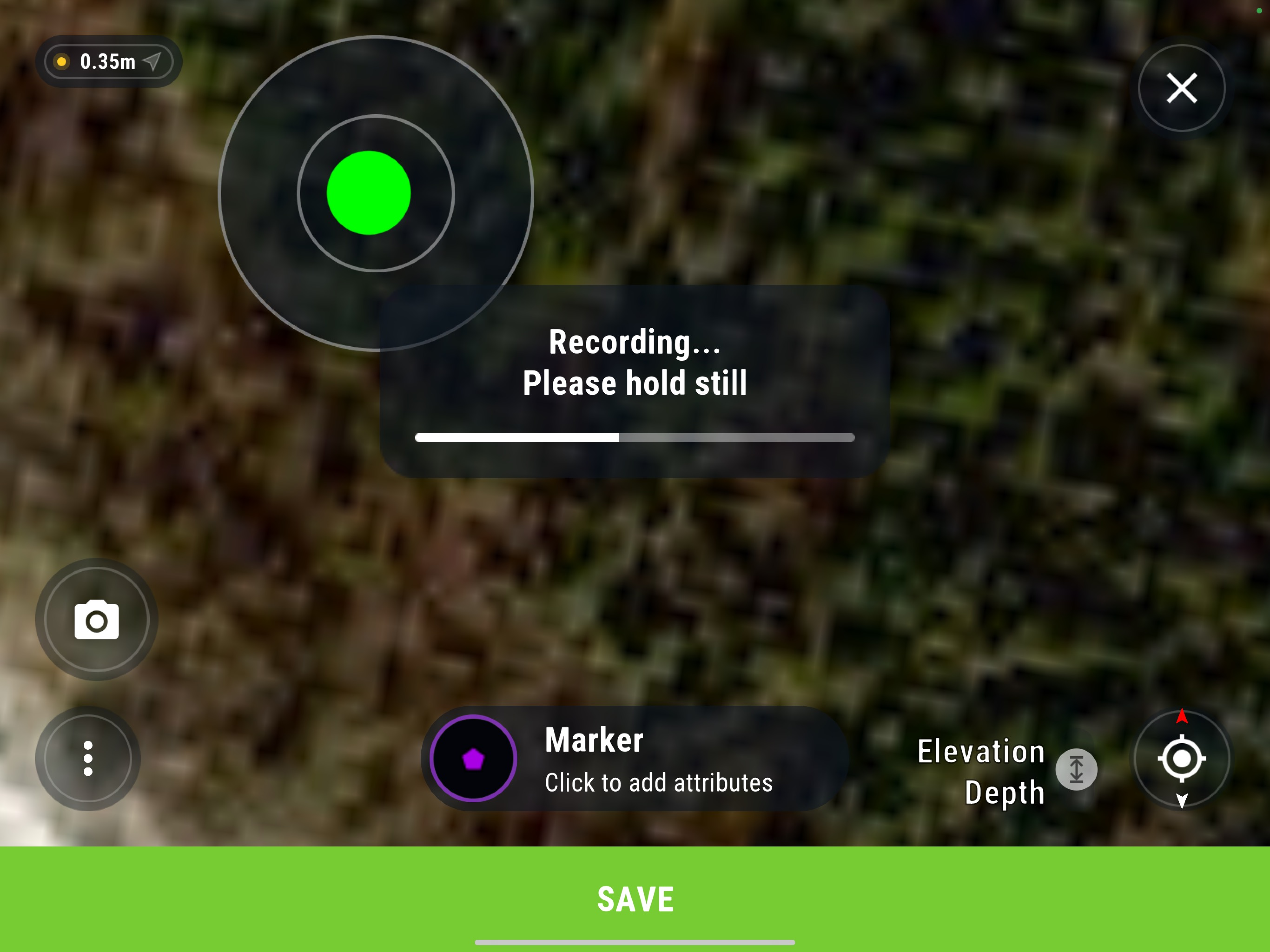

1. Accuracy Bubble: Displays your current location with enhanced accuracy when GNSS is connected.

2. Screen Capture: Captures a screenshot, which is saved to the data entry and the Admin Portal.

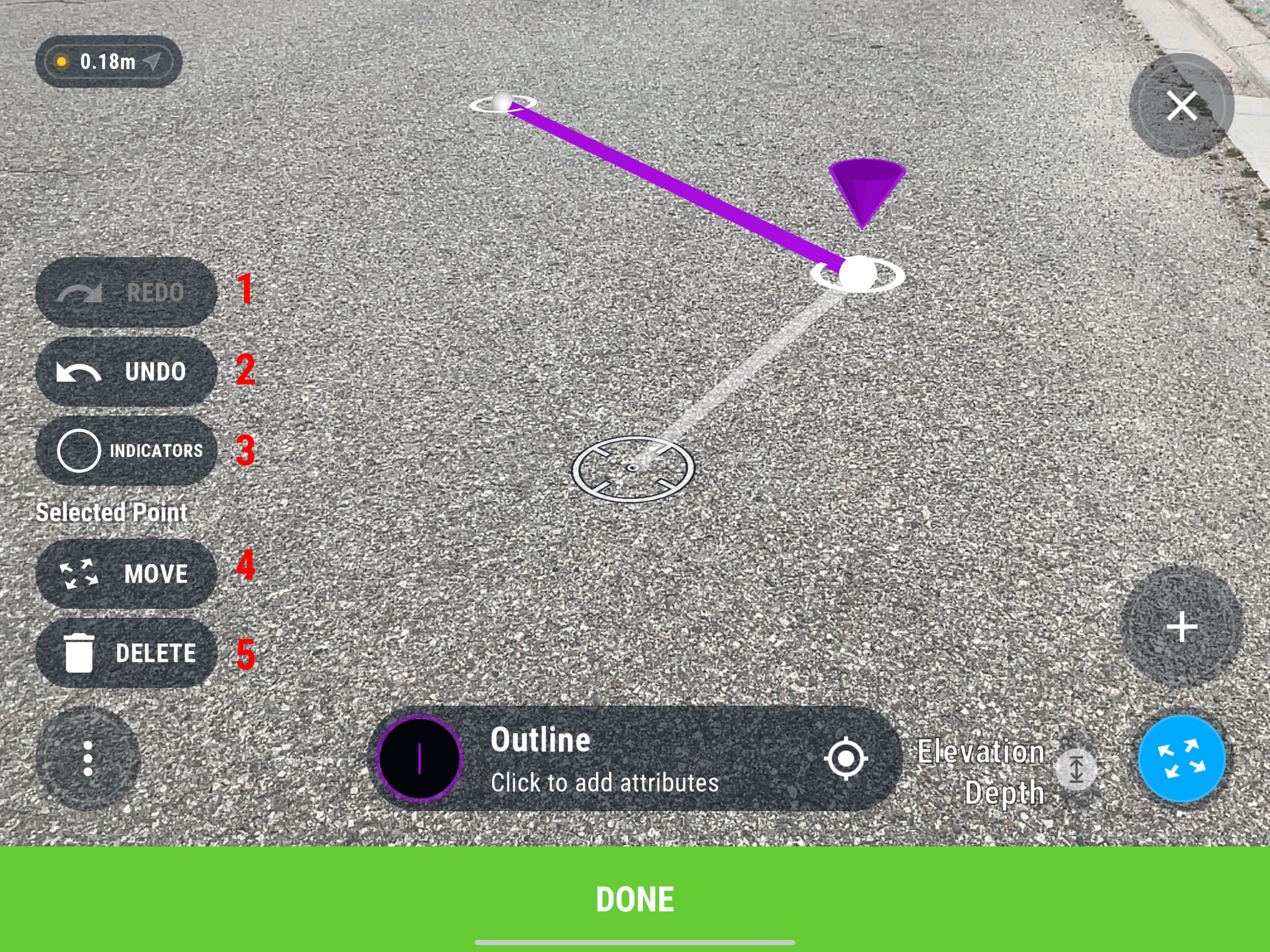

3. Undo/Redo: Quickly edit data collections in real time.

4. Action Bar: Shows the default label (asset name). Tap to edit attributes for the new entry.

5. Data Collection Cursor: Indicates where the next data entry will be placed.

6. Elevation/Depth Slider: Collapsed by default; tap to adjust the cursor’s placement along the Z-axis.

7. Center Button: Keeps the cursor centered by default. Tap to disable and manually place the cursor along detected surfaces (use a finger to align on the X or Y axis).

8. Done: Finalizes data collection and sends the entry to the vGIS Admin Portal.

9. Close: Cancels the current data entry. Unsaved changes will be discarded.

Fig. 3

Editing Information Cards & Attributes

In the Action Bar (Fig. 4), tap the asset name to open its Information Card (Fig. 5). Here, you can:

• Modify the object’s type, size, and height.

• Use the Floor Detection button to reset the floor level for accurate placement (Note: GNSS RTK devices provide the most precise floor level detection).

• Enter any additional attribute values for the object.

When finished, tap Done to save the object.

Fig. 4

Fig. 5

Supplementary Material

Using a GNSS Device

Connecting a GNSS device can significantly improve the accuracy and efficiency of your data collection workflows. Click here to learn more.
