vSite Admin Portal: Updating Project Settings

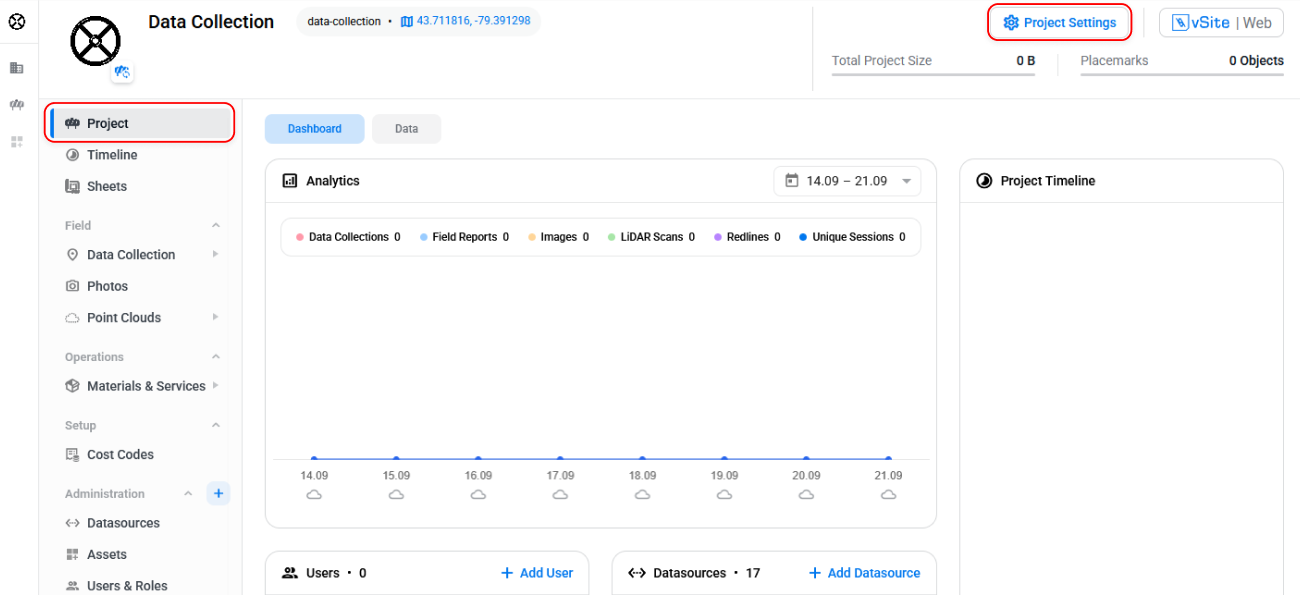

In the Project tab located on the top left side of the vSite Admin Portal, you will be able to view and update information about your project (Fig. 1). Navigate to the Project Settings button on the top-right of the Project dashboard.

Fig. 1

Company Information

  • Logo: Allows you to add a project logo for branding purposes. To upload your logo, click the logo section and navigate to the file you wish to use.
  • Name: This field allows you to enter your project display name.
  • Default Latitude and Longitude: The default latitude and longitude your devices will orientate to when opening vSite Web if there is no default latitude and longitude set at the project level.
  • Language: Select the language you would like to have when using vSite.
  • Description: A description of the project.
Note: If you have made any changes, you need to click the “Save” button in the upper right-hand corner. Upon clicking the Save button, you will receive a confirmation message in the portal window, stating that your company has been updated.

Regional and Units

  • Coordinate Reference System: Allows the user to set a default coordinate system and unit of measurement for their company. The selected CRS and UoM will only be applied to a datasource where both a CRS and UoM have not been set, and there is not a default CRS and UoM set in the Project settings.
  • Measurement System: Select the measurement system most suitable for your company's needs (Metric or Imperial).

Mobile and Web Options

  • Selection Distance: This field sets the maximum rendering distance of objects relative to the user in vSite AR.
  • DTM Offset: Here the Digital Terrain Offset can be set in meters.
  • Data Collection Minimum Required Accuracy: If the accuracy drops below the assigned value, app users will receive an alert message.

Security and Access

vSite is designed to decentralize system management. Permissions define what an administrator is allowed to do for their project.

The following are security options available for use in the vSite Admin Portal:

  • Multi-Factor Authentication: Users will be required to set up and use multi-factor authentication. The email you are registered with will receive a 6-digit code which can then be verified in vSite.
  • Local-Device Authentication: Specific devices will need to be authenticated when using vSite, by entering a unique passcode specific to your device.
  • Shared Asset Access: Determines if project admins have access to company datasources or only project-specific datasources.
  • Project Admin Permissions: Determines level of access to datasources for admins. For Admin Permissions, enabling a specific permission will also enable all permissions to the LEFT of the selected item. For example, when enabling 'Add', the permissions 'Read' and 'Edit' will also be enabled, but Delete will remain disabled.

Project Tools

  • Active tools can be toggled on and off to customize user experience.
  • App Toolkit allows you top enable and disable different tools to match you project's needs. For further customization, tools can also be rearranged in this panel.

API

The API Key Generator can be used to create a unique token to share with selected users or services, to securely view the contents of the company dataset(s) and information (Fig. 2). To read more about it, click here.

Issue Tracking

Configure how tickets, tasks, and issues appear and behave.

Sheets and Redlines

Configure custom callouts for exported Redlines. To read more about exporting Redlines, click here.
