vSite Web: Sheets

How to View Sheets in vSite Web

To view sheets in vSite Web, open your project and click the Sheets icon (Fig. 1).

Features and Tools (Fig. 1)

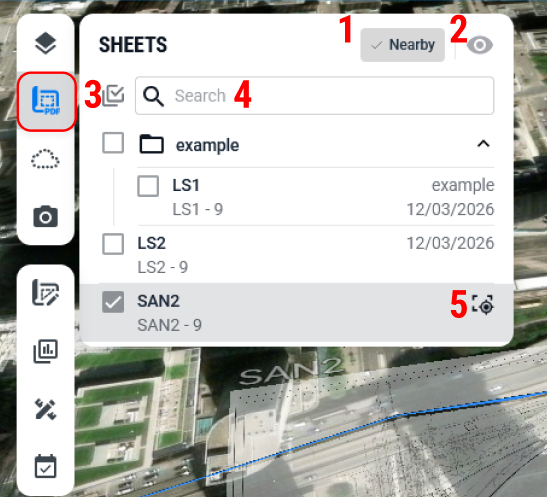

Fig. 1
  1. Nearby filter - The Nearby filter makes it so that only sheets near the current view will appear on the list of Sheets. This filter is on by default.
  2. Toggle view - Toggle all selected sheets on and off from view.
  3. Deselect all - Clear all selected sheets.
  4. Search bar - Search for sheets by name or discipline.
  5. Zoom to object - Zoom to the selected sheet.

Sheet Details

When you click on a sheet in vSite Web, the Sheet Details popup will appear in the top right corner of the screen (Fig. 2). Below are some of the features available in this popup.

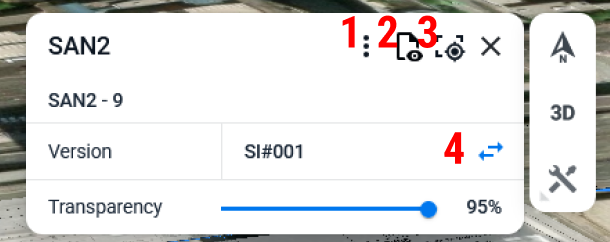

Fig. 2

  1. Download - This button will give you the option to download a PDF of the sheet.

    Note: This will just export the sheet with no additional data. Sheets can also be exported with Redlines - this workflow is documented here.

  2. View sheet - This will open a view of the Sheet where you can compare versions and take sheet measurements.
  3. Zoom to object - Zoom to the selected sheet.
  4. Compare versions - This will open the Compare Sheets tool on your map that will allow you to compare a sheet to its previous versions. Sheet versions can also be compared in the Admin Portal.
