vSite Admin Portal: Updating Company Information

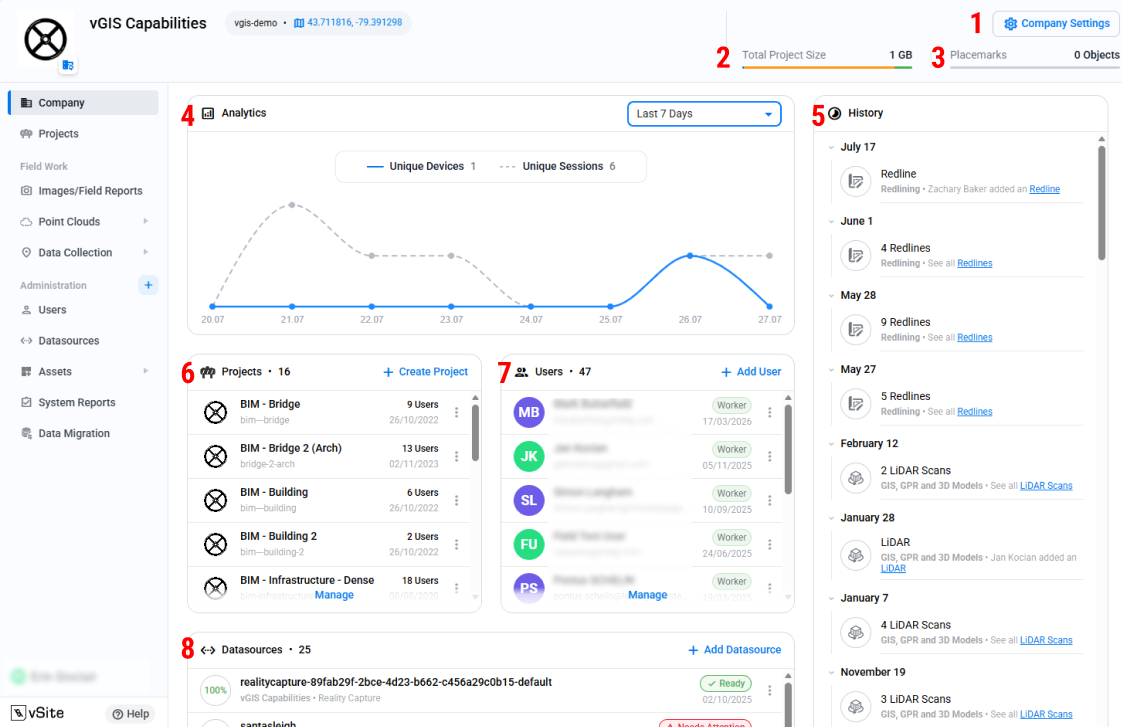

In the Company tab located on the top left side of the vSite Admin Portal, you will be able to view and update information about your company (Fig. 1). Below are the available options under the Company tab.


Fig. 1
  1. Company Settings - This section is where you can edit the default settings for your company. These will be the default settings applied to new projects. Detailed information on Company Settings can be seen below.
  2. Statistics Widget - hovering over this widget shows some general statistics about your company, including total size of data, number of scans, and number of images.
  3. Monthly Placemarks Widget - Hovering over this widget shows your placemarks and data collection for the current month.
  4. Analytics - View activity and statistics within a certain time range. By default, the time range is set to the past week, but it can be changed in the top right drop-down of the tool. Hovering over the graph will also provide more information.
  5. Company History - View recent activity by type at a glance.
  6. Projects- Add and manage projects within the company.
  7. Users - Add and manage users within the company.
  8. Datasources - Add and manage datasources within the company.

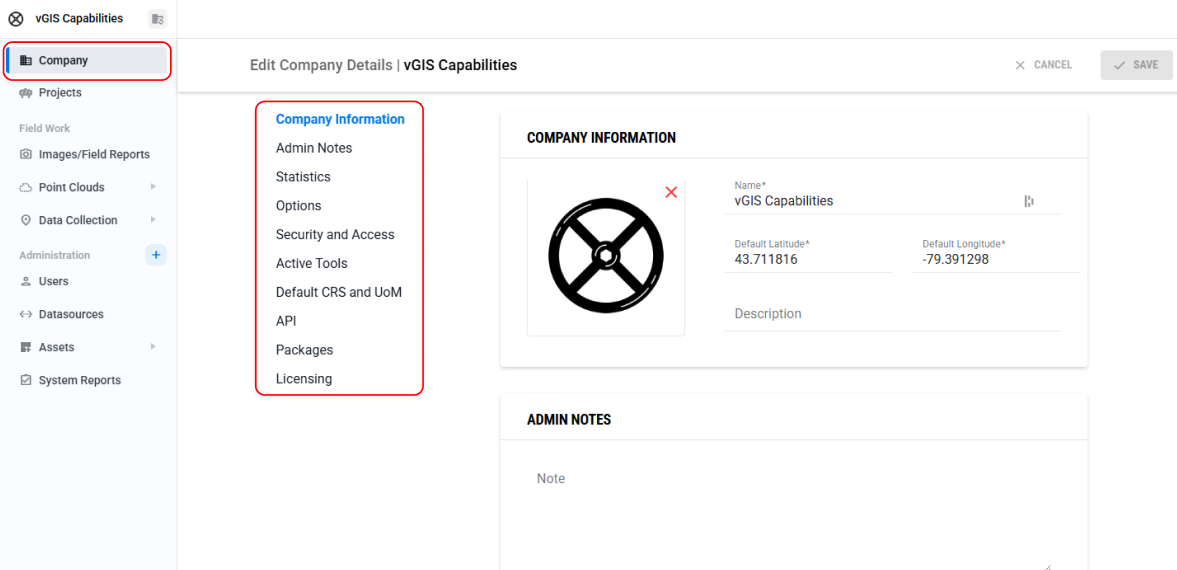

Company Settings

Company Information

  • Company Logo: Allows you to add your company logo for branding purposes. To upload your logo, click the logo section and navigate to the file you wish to use.
  • Name: This field allows you to enter your company display name.
  • Default Latitude and Longitude: The default latitude and longitude your company’s devices will orientate to when opening vSite Web if there is no default latitude and longitude set at the project level.
  • Description: A description of the company/team.
Note: If you have made any changes, you need to click the “Save” button in the upper right-hand corner. Upon clicking the Save button, you will receive a confirmation message in the portal window, stating that your company has been updated.

Admin Notes

Admin notes allows for company admins to write notes that will be kept under the company tab.

Security and Access

vSite is designed to decentralize system management. Permissions define what an administrator is allowed to do for their team.

The following are security options available for use in the vSite Admin Portal:

  • Multi-Factor Authentication: Users will be required to set up and use multi-factor authentication. The email you are registered with will receive a 6-digit code which can then be verified in vSite.
  • Local-Device Authentication: Specific devices will need to be authenticated when using vSite, by entering a unique passcode specific to your device.
  • Shared Asset Access: Determines if project admins have access to company datasources or only project-specific datasources.
  • Admin Permissions: Determines level of access to datasources for admins. For Admin Permissions, enabling a specific permission will also enable all permissions to the LEFT of the selected item. For example, when enabling 'Add', the permissions 'Read' and 'Edit' will also be enabled, but Delete will remain disabled.

Regional and Units

  • Coordinate Reference System: Allows the user to set a default coordinate system and unit of measurement for their company. The selected CRS and UoM will only be applied to a datasource where both a CRS and UoM have not been set, and there is not a default CRS and UoM set in the Project settings.
  • Measurement System: Select the measurement system most suitable for your company's needs (Metric or Imperial).
  • Selection Distance: This field sets the maximum rendering distance of objects relative to the user in vSite AR.
  • DTM Offset: Here the Digital Terrain Offset can be set in meters.
  • Data Collection Minimum Required Accuracy: If the accuracy drops below the assigned value, app users will receive an alert message.

Mobile and Web Options

  • Map Provider: Determines the default base map used in vSite Web and AR.
  • Language: Select the language you would like to have when using vSite.

Active Tools

Active tools can be toggled on and off to customize user experience.

API

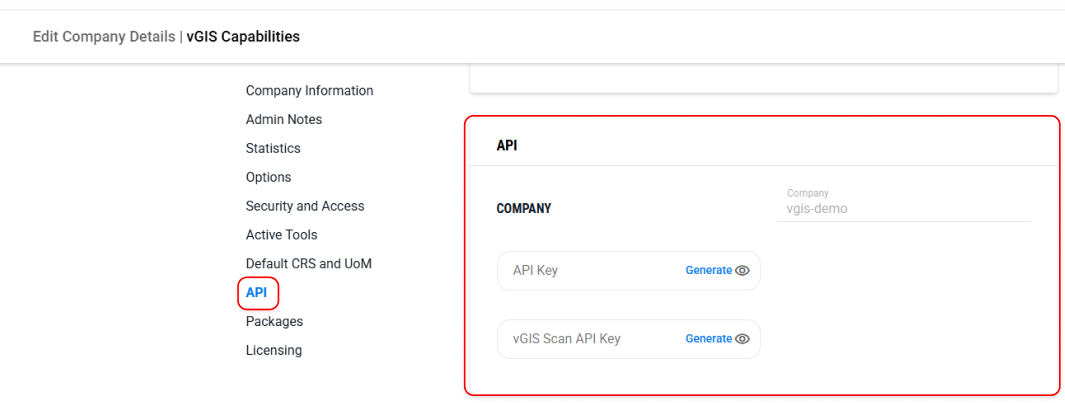

The API Key Generator can be used to create a unique token to share with selected users or services, to securely view the contents of the company dataset(s) and information (Fig. 2). To read more about it, click here.

Fig. 2

Jobs and Tasks

Configure how tickets, tasks, and issues appear and behave.






Have Questions? Feel free to Submit A Request to speak with a member of the vGIS Support Team.
