vSite AR: Reality Capture

Overview

The Reality Capture feature in vSite uses LiDAR technology to generate highly detailed and accurate 3D models of your worksite in minutes. This allows teams to document site conditions, monitor progress, and share visual data through the Admin Portal for better collaboration and decision-making.

How To

Perform a LiDAR Scan

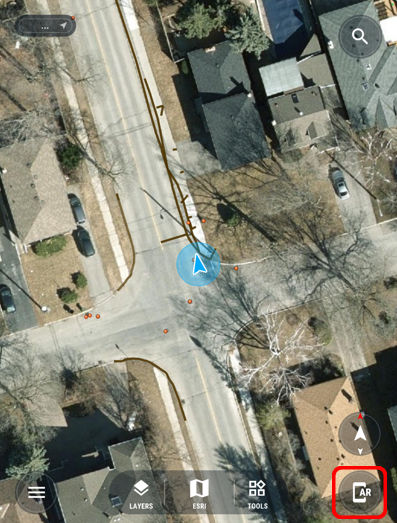

  1. Open the vSite AR app and access AR View (Fig. 1). Verify your position and tap Next.

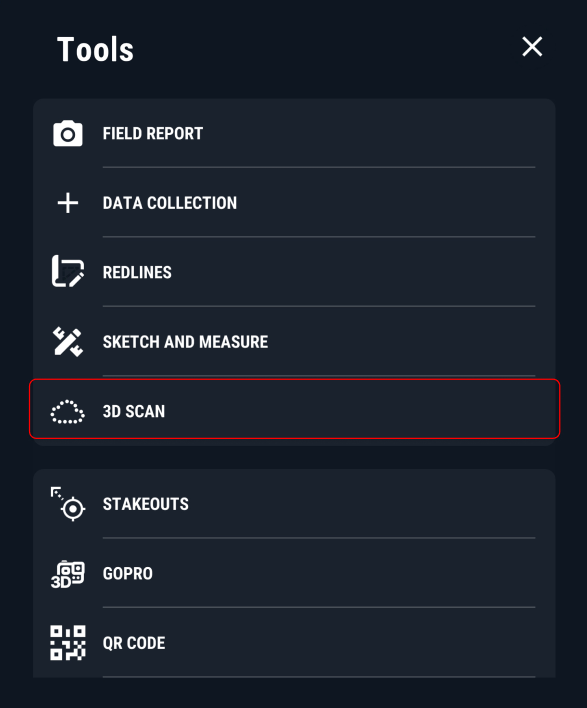

  2. Tap Tools, then select 3D Scan (Fig. 2).
  3. The vSite Scan app will open automatically. To learn about reality capture in vSite Scan. click here.
map menu.png
Fig. 1
Fig. 2



Supplementary Material

Viewing Reality Capture Scans in the Admin Portal

Portal Admins can view and manage scans in several ways:

  1. Reality Capture Tab: Shows a map with pins for each scan location and a list with details like creation date, name, assigned team, and method (LiDAR, Rezo, or vGIS Scan). Click any scan for a summary and click View Model to open it.
  2. Data Sources Tab: Stores scans as data sources ready for vGIS configuration.
  3. Reports Tab: Track the status and progress of each scan to ensure it uploads successfully.

Additional Resources

vSite Scan: Reality Capture

vSite Scan: Best Practices for Scanning
