vSite AR: Accessing Sheets

Before accessing sheets in the vSite AR app, ensure that sheets are properly configured and georeferenced in the Admin Portal. Steps for configuring sheets can be found in this document.

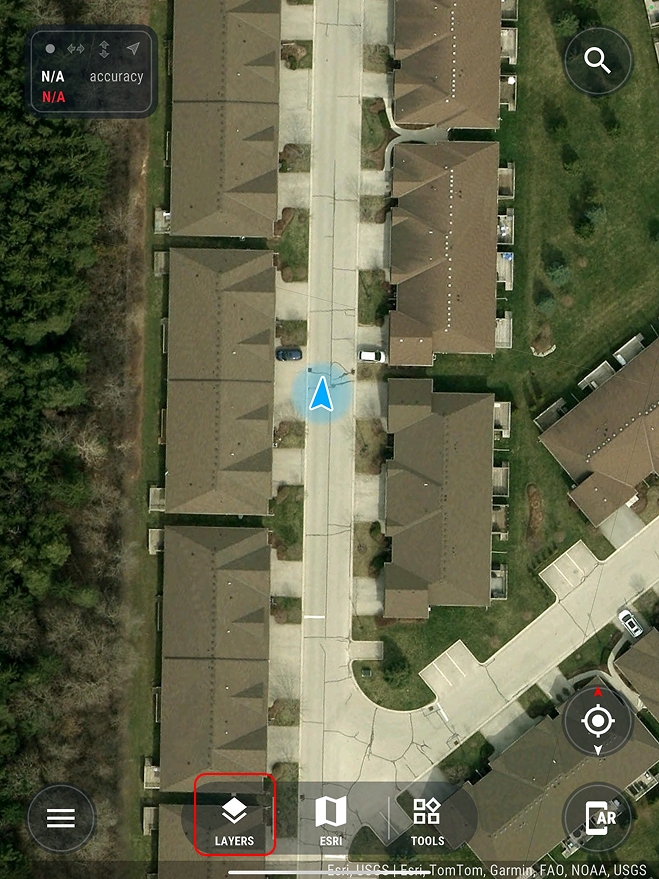

To access your sheets, open the vSite AR app and select your project, then go to the Layers tab (Fig. 1).

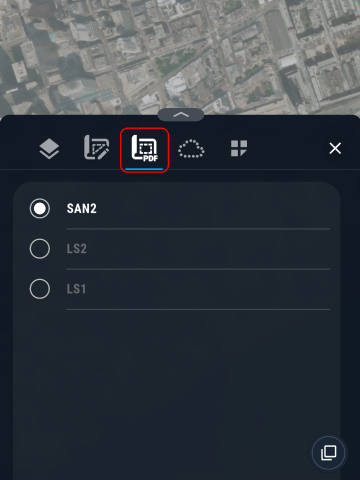

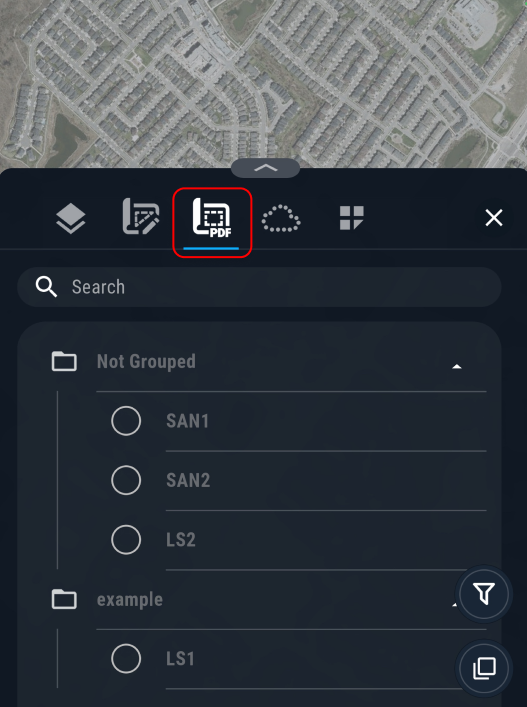

Select the Sheets icon. From here you can toggle individual sheets on and off (Fig. 2). The search bar can be used to locate specific sheets, and the filter button at the bottom right can be used to toggle the "Nearby" filter, only showing the sheets closest to your location.

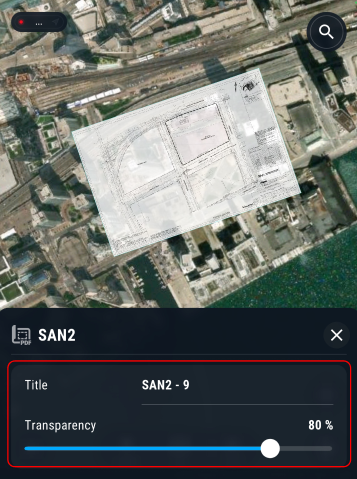

By clicking on a sheet in Map Mode, you can see the sheet Title and change the Transparency using the slider (Fig. 3).
