Admin Onboarding: UI Basics

This article gives you a quick look at all of the options given to you in vSite AR. Follow the link at the end of the article to learn more details about each function.

AR View

UI Basics 1.png

  1. Accuracy Bubble: Tap to Open - Helps identify movement (when connected to GNSS) Tap to switch between Mock Mode & Internal Mode.
  2. Cursor: Identifies line of sight.
  3. Cross Section Slider: Slide upwards to project a slicing tool that cuts through 3D models for viewing.
  4. Main Menu: Opens a Menu full of options, see below.
  5. Adjust: Brings the adjust menu, slide to reposition models or use the sliders to adjust for direction/ elevation.
  6. Layers: Enable/ Disable preset layers assigned by admins. Flip to Tag tab to hide/unhide assigned tags.
  7. Tools: Opens the Advanced Toolkit. Click Here for more.
  8. Map View: Allows you to view your location on a top-down map (see Map View below).
  9. Transparency Slider: Slide downwards to reduce visibility of 3D models.

To see a more detailed explanation of the features found in AR view, click here.

Map View

UI Basics 2.png

  1. Accuracy Bubble: Tap to Open - Helps identify movement (when connected to GNSS) Tap to switch between Mock Mode & Internal Mode.
  2. Search: Tap to Open - Look up addresses and landmarks in the area.
  3. User Location Cursor: Displays current location of the mobile device used.
  4. Main Menu: Opens a Menu full of options, click here for more details.
  5. Layers: Enable/ Disable preset layers assigned by admins but in a map view. Flip to Tag tab to hide/unhide assigned tags.
  6. Maps: Select between preset Base Maps (ESRI by default).
  7. Tools: Adjust to customize the area of view, 360 View brings up Google Street View in the user's location (if available), Map Color modifies the map shader as needed to contrast from 3D models.
  8. AR View: Returns you to AR view (see AR View above).
  9. Compass: If user location is not on the map from moving, tap the compass to return the user to the center of the map.

To see a more detailed explanation of the features found in Map view, click here.

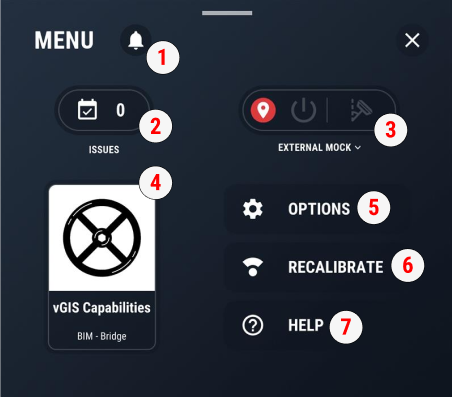

Main Menu

  1. Notifications: Notifies the user of pending uploads.
  2. Issues: Opens a list of any Issues assigned to the User.
  3. GNSS Switch: As long as GNSS is connected to the device itself, this switch will connect vGIS to the connected hardware. Click Here to read more.
  4. Project Selector: Brings up a list of assigned projects to flip between projects.
  5. Options: Customize GNSS, Scene, and System Settings. Click Here to read more.
  6. Recalibrate: Initiates the calibration process. This must be done whenever a User exits vGIS AR. Click Here to read more.
  7. Help: Opens a browser window to the vGIS Support Center (Knowledge base and ticketing system).

To see a more detailed explanation of the features found in the Main Menu, click here.



Have Questions? Feel free to Submit A Request to speak with a member of the vGIS Support Team.
