vSite AR: Layers

A layer is an object group that has been configured by a company administrator to optimize the visualizations for different user types.

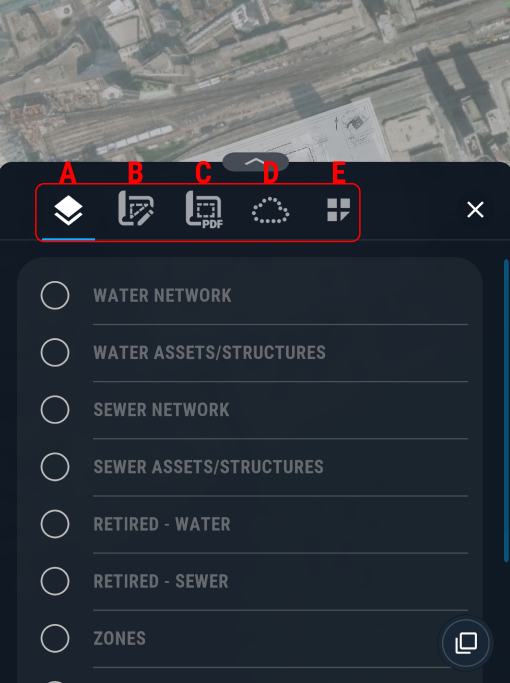

To manage layers, select Layers from the AR action bar (Fig. 1). This brings up the layers list (Fig. 2), where users can choose which layers they can visualize by either enabling or disabling them. If a layer is unchecked or disabled, it will not be displayed in Map View or AR View.

Each tab within the Layers list has a different type of data that can be toggled on and off.

• Layer Groups (Fig. 2A) - Configured in the Admin Portal.

• Redlines (Fig. 2B) - Created in vSite AR or vSite Web.

• Sheets (Fig. 2C) - Configured in the Admin Portal.

• Point Clouds (Fig. 2D) - Created in vSite Scan.

• Issue Tags (Fig. 2E) - Created in vSite Web.
